For 5/16" (8 mm) Glass
Use Monolithic Tempered Glass

Recess in Bottom Channel Hides Caulk Line

Clear Vinyl's Secure Glass in Channel and Eliminate the Need for Messy Silicone

CRL Dry Glaze U-Channel offers the installer many benefits. It eliminates the need for messy silicone between the glass and metal, dramatically reducing installation time. If the glass is ever scratched or damaged it can be removed without the need to cut out the sealant.

CRL Brite Anodized Dry Glaze U-Channel With Vinyl

Other Products/Finishes:

CATALOGUE NUMBER	DESCRIPTION	COLOUR
DUC516BA	CRL Brite Anodized Dry Glaze U-Channel With Vinyl
DUC516BN	CRL Brushed Nickel Dry Glaze U-Channel With Vinyl

More Details:

Catalogue Number:

DUC516BA

Also Available in These Catalogues:

SD16 Frameless Showerscreen Hardware 2015, PAGE 197S

CRL23R Frameless Showerscreen and Mirror Hardware, PAGE 301J

GG2014A European Glass & Glazing, PAGE E091

CRL93A Showerscreen, PAGE SD107

Colour:

Brite Anodized

Channel Length:

98" (2.49 m)

Ship Via:

UPS Oversize Rate

Shipping Weight:

1 lb (454g)

Minimum Order:

1 Each

Additional Product Information:

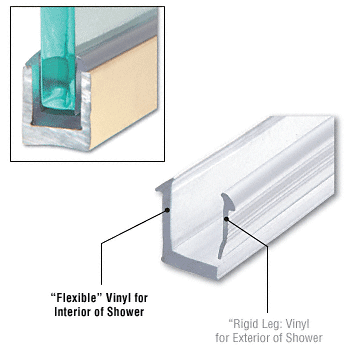

The extruded aluminum channel is wrapped in a protective poly sleeve with two pieces of clear vinyl to secure 5/16" (8 mm) thick glass. The Flexible Vinyl goes on the interior of the shower, while the Rigid Leg Vinyl "rolls in" on the exterior side. Matching finish End Caps adhere to channel ends, and must be ordered separately.

NOTE: Not designed for "Lift and Drop" applications.

SPECIFICATIONS:
Materials: 6463-T5 Extruded Aluminum, Rigid Clear Vinyl, and Flexible Clear Vinyl
Includes: 98" (2.49 m) Lengths of Channel, Rigid Vinyl, and Flexible Center Vinyl

Important Notes:

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
