C0L067CH - CRL Chrome Cologne Series Wall Mount Positive Close Cologne Hinge
C.R.LaurenceC.R. Laurence of Australia Pty Ltd.
Connecting the World to Everything Glass
 YOUR ACCOUNT               VIEW CART                SIGN INSIGN OFF


View Larger Image

Catalogue Number: C0L067CH
Finish: CHROME


  • Special Grooved Internal Pivot Pin Allows Positive and Precise Closing Action

  • Stocked in Wall Mount and 180 Degree Glass-to-Glass Hinges

  • Stocked in Four Most Popular Finishes
  • Other Finished Available Upon Special Order

    		•

    The Positive Close Cologne Hinge contains an internal grooved pivot pin that allow the door a precise and positive closing action. This is a different closing action than the typical self-centering Cologne Hinges. Stocked in our four most popular finishes, and available in other finishes upon special order.


    CRL Chrome Cologne Series Wall Mount Positive Close Cologne Hinge





    Other Products/Finishes:

    CATALOGUE NUMBER DESCRIPTION COLOUR
    C0L067CH CRL Chrome Cologne Series Wall Mount Positive Close Cologne Hinge
    C0L0670RB CRL Oil Rubbed Bronze Cologne Series Wall Mount Positive Close Hinge
    C0L067BN CRL Brushed Nickel Cologne Series Wall Mount Positive Close Hinge

    Catalogue Number:C0L067CH
    Also Available in These Catalogues:
    CRL23R Frameless Showerscreen and Mirror Hardware, PAGE 161J
    Colour:Chrome
    Ship Via:Can Ship UPS
    Minimum Order:1 Each

    Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

    Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).

    SPECIFICATIONS:
    Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
    Construction: Solid Brass
    Hinge Swings: 90 Degrees Inwards and Outwards
    Closing Type: Positive Closing to Zero Degrees
    Cut-Out Required
    Includes: Gaskets, Phillips Screws, Allen Screws, and Glass Fabrication Dimensions

    Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.

    CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. ColorsColours can vary depending on your computer's video card and on how your monitor's colorcolour is adjusted.

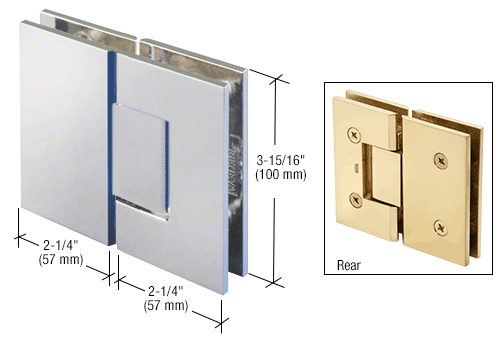

    V1E780CH
    CRL Chrome 180 Degree Glass-to-Glass Positive Close Vienna Hinge

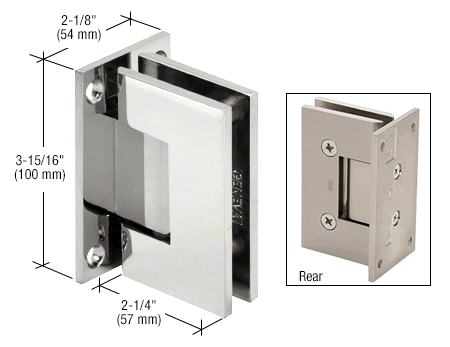

    V1E067CH
    CRL Chrome Wall Mount Positive Close Vienna Hinge

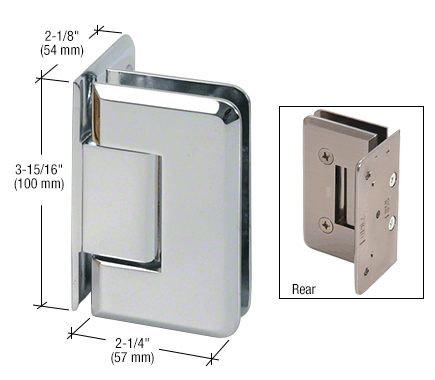

    C0L044CH
    CRL Polished Chrome Cologne 044 Series Wall Mount Offset Back Plate Hinge

    C0L037CH
    CRL Polished Chrome Cologne 037 Series Wall Mount Hinge

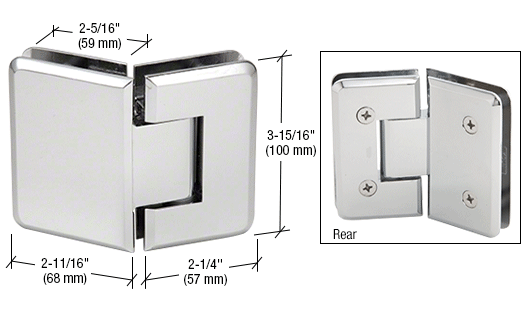

    C0L045CH
    CRL Polished Chrome Cologne 045 Series 135º Glass-to-Glass Hinge

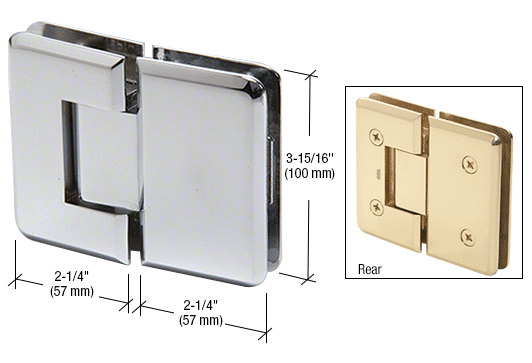

    C0L180CH
