View Larger Image

Catalogue Number: ZUR01PS
Finish: POLISHED STAINLESS


  • 180 Degree Glass-to-Glass Outswing or Inswing Bi-Fold Applications

  • Available in Several Beautiful Finishes

  • Use Monolithic Tempered Glass


  • The CRL Zurich Series of professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass was the first Bi-fold Hinge offered by CRL. All seven Zurich Hinge models feature stainless steel or brass construction, and are available in up to 13 finishes. In addition, screws and washers are interchangeable for a special design accent. Only two holes per Hinge per panel are required, with no cut-out necessary.

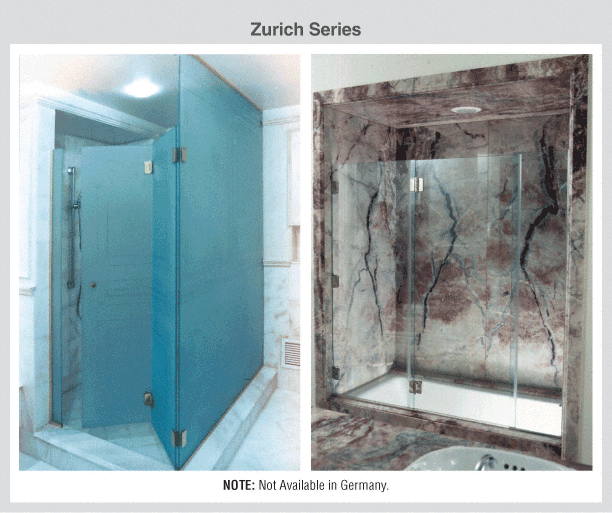

    CRL Polished Stainless Zurich 01 Series 180 Degree Glass-to-Glass Outswing or Inswing Bi-Fold Hinge





    Other Products/Finishes:

    CATALOGUE NUMBER DESCRIPTION COLOUR
    ZUR01PS CRL Polished Stainless Zurich 01 Series 180 Degree Glass-to-Glass Outswing or Inswing Bi-Fold Hinge
    ZUR010RB CRL Oil Rubbed Bronze Zurich 01 Series 180 Degree Glass-to-Glass Outswing or Inswing Bi-Fold Hinge
    ZUR01ABR CRL Antique Brass Zurich 01 Series 180 Degree Glass-to-Glass Outswing or Inswing Bi-Fold Hinge
    ZUR01BN CRL Brushed Nickel Zurich 01 Series 180 Degree Glass-to-Glass Outswing or Inswing Bi-Fold Hinge
    ZUR01WS CRL White Stainless Steel Zurich 01 Series 180 Degree Glass-to-Glass Outswing or Inswing Bi-Fold Hinge

    Catalogue Number:ZUR01PS
    Also Available in These Catalogues:
    SD16 Frameless Showerscreen Hardware 2015, PAGE 130S
    CRL23R Frameless Showerscreen and Mirror Hardware, PAGE 183J
    CRL93A Showerscreen, PAGE SD036
    Colour:Polished Stainless
    Height:3-1/8" (79 mm)
    Width:1-3/16" (30 mm)
    Ship Via:Can Ship UPS
    Shipping Weight:2 lb (907g)
    Minimum Order:1 Each

    Screw and Washer Accent Kit: Interchangeable Screws and Washers for Zurich Series Hinges let you add a special highlighting accent to the installation (e.g., Cat. No. ZUR70). Available in four finishes: Brass, polished stainless, satin stainless, and gold plated.

    Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 36" (914 mm).

    Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 150 lbs. (68 kg) with a maximum door width of 40" (1.02 m).

    SPECIFICATIONS:
    Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
    Special Features: Ideal for Bi-Fold Application. Use ZUR01 and ZUR03 for doors that fold into tub area. Use ZUR02 and ZUR05 for doors that fold out to bathroom area.
    Construction: Stainless Steel or Solid Brass
    Hinge Swings: See descriptions next to photos of hinges.
    Closing Type: Free Swinging
    Two Holes Required Per Hinge Per Panel (No Cut-Out)
    Includes: Gaskets, Screws, and Glass Fabrication Dimensions

    Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.

    CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
