Catalogue Number: SUP26W
Finish: WHITE


  • For 1/4" to 5/16" (6 to 8 mm) Glass
  • May be Used as an Alternative to CRL Header Kits to Secure Fixed Panels and Provide Safety
  • Provides Fixed Panel Support for Enclosures Not Going to Ceiling
  • Wall-to-Glass and Glass-to-Glass Models Available for 1/4" to 1/2" (6 to 12 mm) Thick Glass
  • Use Monolithic Tempered Glass
  • Simply Cut to Size to Accommodate Individual Configurations
  • No Hole Drilling Required

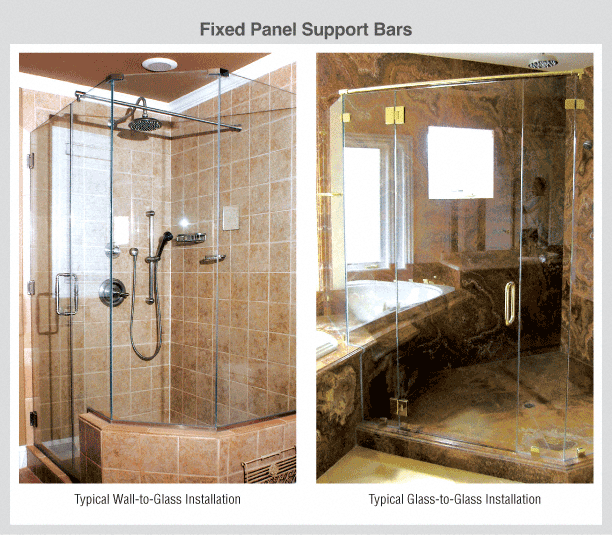

  • These CRL Fixed Panel Support Bars stabilize fixed panels of glass in enclosures that do not go all the way up to the ceiling. The Wall-to-Glass Bar has a bell-shaped clamping device on the wall side, and a solid brass end cap with a swiveling U-shaped receptacle to secure the fixed glass panel. The Glass-to-Glass Bar has solid brass end caps with swiveling U-shaped receptacles on both ends to secure each fixed panel. Nylon-tipped set screws secure the glass and prevent glass-to-metal contact. Bars are available in two lengths, and in sizes to secure 1/4" to 1/2" (6 to 12 mm) thick glass. Finishes are available to match most of our hinges, knobs, and pull handles. No holes or cut-outs are required in the glass.



    CRL White Frameless Shower Door Fixed Panel Glass-to-Glass Support Bar for 1/4" to 5/16" Thick Glass





    Other Products/Finishes:

    CATALOGUE NUMBER DESCRIPTION COLOUR
    SUP26UBR CRL Ultra Brass Frameless Shower Door Fixed Panel Glass-to-Glass Support Bar for 1/4" to 5/16" Thick Glass
    SUP26W CRL White Frameless Shower Door Fixed Panel Glass-to-Glass Support Bar for 1/4" to 5/16" Thick Glass

    Catalogue Number:SUP26W
    Also Available in These Catalogues:
    SD16 Frameless Showerscreen Hardware 2015, PAGE 198S
    CRL23R Frameless Showerscreen and Mirror Hardware, PAGE 310J
    Colour:White
    Length:39" (1 m)
    Ship Via:Can Ship UPS
    Shipping Weight:2 lb (907g)

    SPECIFICATIONS:
    Material: 3/4" (19 mm) Diameter Tubular Brass Bar, Solid Brass Fittings
    Bar Lengths: 39" (1 m); 51" (1.3 m)
    Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
    Includes: All Required Mounting Hardware


    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. ColorsColours can vary depending on your computer's video card and on how your monitor's colorcolour is adjusted.
