SRF20HBS - CRL Brushed Stainless Steel 90 Degree Horizontal Roll Formed Cap Rail Corner
C.R.LaurenceC.R. Laurence of Australia Pty Ltd.
Connecting the World to Everything Glass
 YOUR ACCOUNT               VIEW CART                SIGN INSIGN OFF


View Larger Image

Catalogue Number: SRF20HBS
Finish: BRUSHED STAINLESS


  • Designed for Interior or Exterior Applications

  • 316 Grade Stainless Steel

  • Welded, Finished, and Ready-to-Install
  • Two Sizes and Architectural Finishes
  • Requires Two Connector Sleeves (Not Included)
  • For 1/2" to 27/32" (12 to 21.52 mm) Glass

    		•

    CRL Square Roll Formed Cap Rail Interior Slip-Fit Horizontal Corners allow for hairline joint assemblies with straight lengths of CRL Square Roll Formed Cap Rails only. Use of our Cat. No. 7649 Primer and Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond. Two Square Roll Form Connector Sleeves are required for use with each corner. Not compatible with any other CRL GRS Cap Rail System.


    CRL Brushed Stainless Steel 90 Degree Horizontal Roll Formed Cap Rail Corner





    Other Products/Finishes:

    CATALOGUE NUMBER DESCRIPTION COLOUR
    SRF20HBS CRL Brushed Stainless Steel 90 Degree Horizontal Roll Formed Cap Rail Corner
    SRF20HPS CRL Polished Stainless Steel 90 Degree Horizontal Roll Formed Cap Rail Corner

    Catalogue Number:SRF20HBS
    Also Available in These Catalogues:
    HR18 Architectural Balustrade Systems 2018, PAGE 205B
    Colour:Brushed Stainless
    Diameter:2" (51 mm)
    "L":4-3/16" (107 mm)
    "C":3-3/16" (82 mm)
    Ship Via:Can Ship UPS
    Minimum Order:1 Each

    No additional product information available at this time.
    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. ColorsColours can vary depending on your computer's video card and on how your monitor's colorcolour is adjusted.

    7649
    CRL Loctite® 60 Second Primer for Metal Contact Cement

    32629
    CRL Loctite® Metal Contact Cement

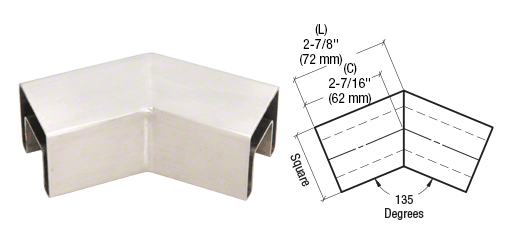

    SRF20H3BS
    CRL Brushed Stainless Steel 135 Degree Horizontal Roll Formed Cap Rail Corner

    GRRF1515PV
    CRL Roll Form Cap Rail Black Rubber Insert for 1/2" and 5/8" Monolithic Glass and 9/16" (13.52 mm) Laminated Glass

    SRF20ECBS
    CRL Brushed Stainless Steel End Cap for 2" SRF20 Series Square Roll Form Cap Railing

    SRF20CSS
    CRL Connector Sleeve for SRF20 Series Cap Rail

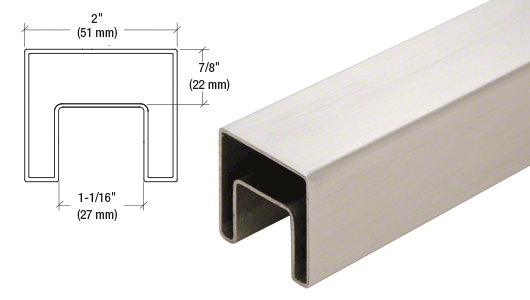

    SRF20BS
