PER044CH - CRL Perth Series Wall-to-Glass Offset Hinge Polished Chrome
C.R.LaurenceC.R. Laurence of Australia Pty Ltd.
Connecting the World to Everything Glass
 YOUR ACCOUNT               VIEW CART                SIGN INSIGN OFF

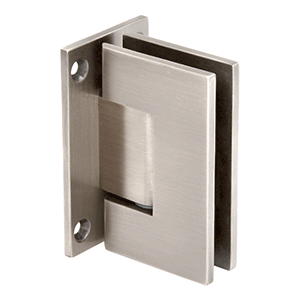

View Larger Image

Catalogue Number: PER044CH
Finish: POLISHED CHROME


  • Solid Brass Construction

  • Glued in Gaskets

  • Suitable for 10 mm Thick Glass
  • Recommended Wall-to-Glass Clearance: 8 mm

  • Perth Series professional hinges are pre-set to accommodate 10 mm thick glass. The gaskets are glued into the hinge, promoting rapid installation. Composed of solid brass, the spring will self-center within 25 degrees of the closed position and will open both inwards and outwards. The hardware is available in several finishes.



    CRL Perth Series Wall-to-Glass Offset Hinge Polished Chrome





    Other Products/Finishes:

    CATALOGUE NUMBER DESCRIPTION COLOUR
    PER044CH CRL Perth Series Wall-to-Glass Offset Hinge Polished Chrome
    PER044ABR CRL Perth Series Wall-to-Glass Offset Hinge Antique Brass
    PER044BAB WALL MOUNT PERTH HINGE OFFSET
BRUSHED ANTIQUE BRASS
    PER044BB WALL MOUNT PERTH HINGE OFFSET BRUSHED BRASS PVD
    PER044BN CRL Perth Series Wall-to-Glass Offset Hinge Brushed Nickel
    PER044BR CRL Perth Series Wall-to-Glass Offset Hinge Polished Brass PVD
    PER044BRG CRL Perth Series Wall-to-Glass Offset Hinge Brushed Rose Gold
    PER044MBL CRL Perth Series Wall-to-Glass Offset Hinge Matt Black
    PER044MGM CRL Perth Series Wall-to-Glass Offset Hinge Matt Gun Metal
    PER044SB CRL Perth Series Wall-to-Glass Offset Hinge Satin Brass PVD
    PER044SC CRL Perth Series Wall-to-Glass Offset Hinge Satin Chrome
    PER044W CRL Perth Series Wall-to-Glass Offset Hinge White

    Catalogue Number:PER044CH
    Also Available in These Catalogues:
    This item is currently only available in Australia and surrounding areas
    Colour:Polished Chrome
    Wide:55 mm
    High:90 mm
    Suitable for:10 mm Thick Glass
    Ship Via:No UPS - Common Carrier Only

    SPECIFICATIONS:
    Using two hinges: 36 kg with a maximum door width of 711 mm
    Using three hinges: 54 kg with a maximum door width of 813 mm
    Glass Thickness: 10 mm
    Construction: Solid Brass
    Hinge Swings: 90 degrees in and 90 degrees Out
    Gaskets: Glued in preset for 10 mm thick glass
