GSD522MFPK1TB - GSD52 Slim-Line Sliding Door Kit With Fixed Panel 2000 mm Brushed Aluminium
C.R.LaurenceC.R. Laurence of Australia Pty Ltd.
Connecting the World to Everything Glass
 YOUR ACCOUNT               VIEW CART                SIGN INSIGN OFF


View Larger Image

Catalogue Number: GSD522MFPK1TB
Finish: BRUSHED ALUMINIUM


  • Slim-line construction and design

  • Suitable for 10 mm, 12 mm and 13.52 mm Thick Glass

  • Supports up to 80 kg Doors
  • Available in Brushed Aluminium and Satin Anodised
  • GSD51 Standard Version Available

    		•

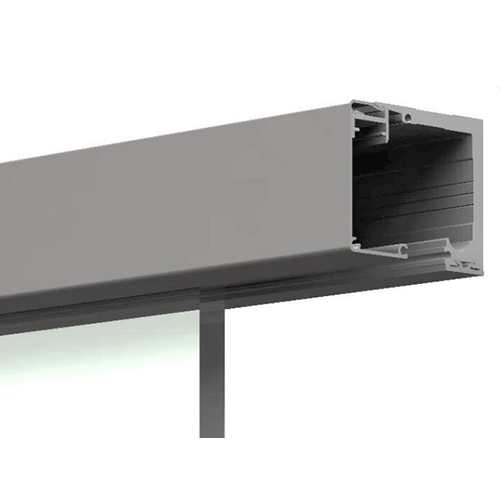

    The GSD52 Slim-Line Sliding Door System is versatile in both construction and design. Its slim top rail is only 51 mm tall and comprises a single piece of extruded aluminium track with a clip-on cover and two end caps. Both the track and cover are available in brushed aluminium and satin anodised finishes. Three independent rollers attached to the clamps offer a smooth rolling motion and prevent the clamp assembly from jumping off the track. A hydraulic damper within the track acts as a soft-closing mechanism to prevent sliding door impact.



    GSD52 Slim-Line Sliding Door Kit With Fixed Panel 2000 mm Brushed Aluminium





    Other Products/Finishes:

    CATALOGUE NUMBER DESCRIPTION
    GSD522MFPK1TB GSD52 Slim-Line Sliding Door Kit With Fixed Panel 2000 mm Brushed Aluminium
    GSD522MFPK1TSA GSD52 Slim-Line Sliding Door Kit With Fixed Panel 2000mm Satin Anodised
    GSD523MFPK1TB GSD52 Slim-Line Sliding Door Kit With Fixed Panel 3000mm Brushed Aluminium
    GSD523MFPK1TMB GSD52 Slim-Line Sliding Door Kit With Fixed Panel 3000mm Matt Black
    GSD523MFPK1TSA GSD52 Slim-Line Sliding Door Kit With Fixed Panel 3000mm Satin Anodised

    Catalogue Number:GSD522MFPK1TB
    Also Available in These Catalogues:
    This item is currently only available in Australia and surrounding areas
    Ship Via:No UPS - Common Carrier Only

    The GSD52 can be wall mounted or ceiling mounted. The robust clamping and roller system can support glass panels weighing up to 80 kg and is suited to 8 mm, 10 mm, 12 mm & 13.52 mm thick glass. The GSD52 Slim-Line Sliding Door System is easy to install and economical. There is no need for any glass clamping notch preparation. Coupled with its slim sightline, the GSD52 is an ideal solution for every designer and installer.
    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. ColorsColours can vary depending on your computer's video card and on how your monitor's colorcolour is adjusted.

    CW12
    CRL Clear Polycarbonate Wipe with Pile Weatherstrip

    GSD524MK1TB
    GSD52 Slim-Line Sliding Door Bi-Parting Kit 4000mm Brushed Aluminium

    FP214BS

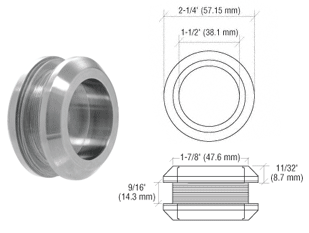

    CRL Brushed Stainless Laguna Series Thru-Glass Pull
