Structural Glazing Spacer for Field and Shop Glazing

Superb Spacer for Two and Four Sided Structural Silicone Glazing Systems

Chemically Compatible with All Silicones Tested

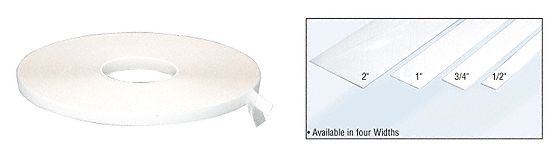

CRL Structural Spacer Tape is a semi-rigid foam tape with an aggressive pressure-sensitive adhesive. This high density tape has a specially formulated cellular substrate, and is used as a spacer for joint dimension control in structural silicone glazing systems. It is the most widely used spacer tape for structural silicone systems. The tape has proven to be compatible with all commercial silicone sealants used for structural glazing. It has a highly aggressive adhesive on both sides, and a semi-rigid, open cell structure that maintains the required spacing, and allows air and moisture to reach the silicone to allow optimum curing. Its low conductivity reduces heat transfer and inhibits condensation on windows, doors and metal systems. It comes only in an architectural black finish, and five stock sizes. Other sizes may be available on special order.

CRL 3 x 6 mm Structural Spacer Tape

Other Products/Finishes:

CATALOGUE NUMBER	DESCRIPTION
2104X6	CRL 3 x 6 mm Structural Spacer Tape
2104X9	CRL 3.2 x 9 mm Structural Glazing Spacer Tape
2104X12	CRL 3 x 12 mm Structural Spacer Tape
2106X6	CRL 4.8 x 6 mm Structural Glazing Spacer Tape
2106X9	CRL 4.8 x 9 mm Structural Glazing Spacer Tape
2106X12	CRL 4.8 x 12 mm Structural Glazing Spacer Tape
2108X6	CRL 6 x 6 mm Structural Glazing Spacer Tape
2108X9	CRL 6 x 9 mm Structural Glazing Spacer Tape
2108X12	CRL 6.4 x 12 mm Structural Glazing Spacer Tape
2112X12	CRL 10 x 12 mm Structural Glazing Spacer Tape

More Details:

Catalogue Number:

2104X6

Also Available in These Catalogues:

This item is currently only available in Australia and surrounding areas

Thickness of Tape:

1/8" (3 mm)

Width of Tape:

1/4" (6 mm)

Feet per Roll:

50' (15 m)

Ship Via:

Can Ship UPS

Shipping Weight:

1 lb (454g)

Case Qty:

Additional Product Information:

This tape is designed: as a spacer for glass, metal, stone, mineral cement and plastic panels in structural silicone glazing systems, including two-and four-sided structural silicone glazing of curtain walls, storefronts, skylights and windows; to temporarily secure glazing or panels to framework in shop fabrication of unitized structural silicone glazing and cladding systems; to temporarily secure lightweight veneers to substrates while permanent structural silicone adhesives are curing; as a thermal break to reduce the conduction of heat; to provide an even sight line in vision areas.

Recommended application temperatures range from 60°F (15°C) to 125°F (52°C). Contact surfaces must be thoroughly cleaned. Position tape carefully, as it cannot be repositioned after initial contact. Store at room temperature.
