Designed for 90 Degree Glass-to-Glass Connections

Strong Stainless Steel Construction

16 Degrees of Adjustability (8 Degrees in Each Direction)

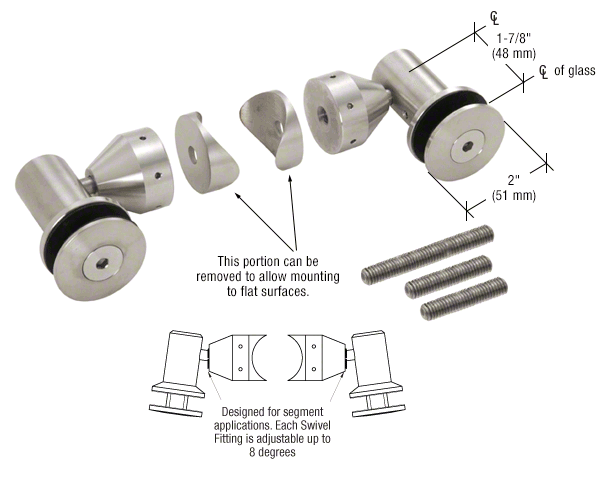

This CRL Swivel Glass-to-Glass Fitting is designed for those special applications when connecting glass panels at 90 degrees. The Fittings add rigidity to the unit, and they adjust 16 degrees (8 degrees in any direction) to accommodate for segmented or out of line glass panels. Glass fabrication is limited to only one 3/4" (19 mm) hole per mount.

CRL Brushed Stainless 90 Degree Swivel Glass-to-Glass Fitting for 1/2" Glass

Other Products/Finishes:

CATALOGUE NUMBER	DESCRIPTION	COLOUR
RB55SBS	CRL Brushed Stainless 90 Degree Swivel Glass-to-Glass Fitting for 1/2" Glass
RB55SPS	CRL Polished Stainless 90 Degree Swivel Glass-to-Glass Fitting for 1/2" Glass

More Details:

Catalogue Number:

RB55SBS

Also Available in These Catalogues:

CRL63A Architectural Hardware Master, PAGE 545H

CRL93A Architectural Hardware, PAGE CH294

AM09 Architectural Metals 2009, PAGE M163

Colour:

Brushed Stainless

Ship Via:

Can Ship UPS

Shipping Weight:

2 lb (907g)

Minimum Order:

1 Each

Additional Product Information:

SPECIFICATIONS:
For Use with 1/2" (12 mm) Tempered Glass (Do not use with raw or annealed glass)
Glass Fabrication:
One 3/4" (19 mm) Diameter Hole Per Fitting
