Secures Shower Enclosure Not Going to Ceiling
Use Monolithic Tempered Glass

Allows Horizontal (Side-to-Side) Adjustment of Hinge After Installation

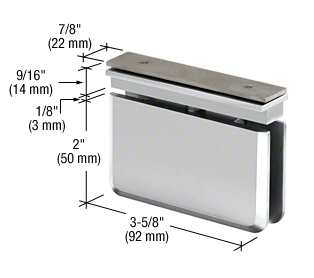

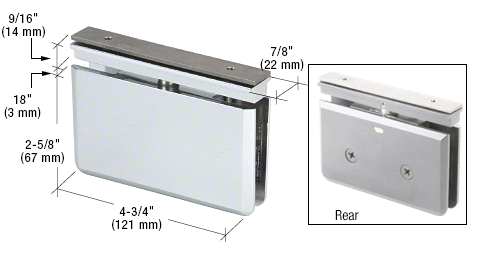

No Hole Drilling Required Through Header for Adaptor, if Using Prima Hinge Model PPH06 or Senior Prima Hinge Model SRPPH06
Constructed of Heavy 6063-T5 Aluminum Alloy
For Use with 5/16" (8 mm), 3/8" (10 mm), and 1/2" (12 mm) Thick Glass

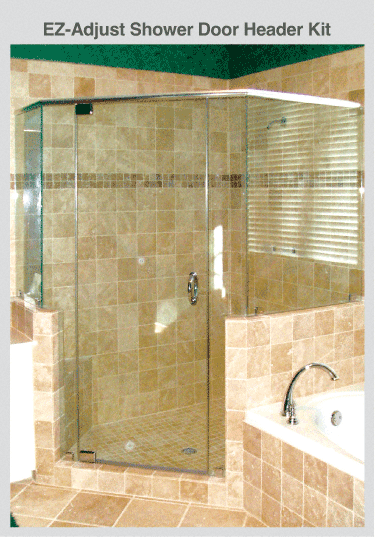

The CRL EZ-Adjust Shower Door Header Kit provides a safe and beautiful frameless shower installation by securing enclosures that do not reach the ceiling. Acting as a "crown" over the top of the glass, the EZ-Adjust Shower Door Header Kit is bracketed to each wall. The EZ-Adjust System allows adjustability after installation in that the hinge (PPH06 and SRPPH06 only) can be moved left and right as desired. No drilling through the Header is required for an Adaptor Block if using Prima Hinge Model PPH06 or Senior Prima Hinge Model SRPPH06, due to a built-in adaptation to the hinges. Constructed of heavy 6063-T5 aluminum alloy, the EZ-Adjust Header Kit is stocked in up to eight popular finishes. A choice of 95" and 144" (2.49 and 3.66 m) stock lengths allow the user to cut as desired. A Snap-in Filler Insert for the door pocket, along with Wall Mounting Brackets and Clear Glazing Vinyl round out the Kit.

CRL Brite Anodized 95" EZ-Adjust Shower Door Header Kit

Other Products/Finishes:

CATALOGUE NUMBER	DESCRIPTION	COLOUR
EHK98BA	CRL Brite Anodized 95" EZ-Adjust Shower Door Header Kit

More Details:

Catalogue Number:

EHK98BA

Also Available in These Catalogues:

SD16 Frameless Showerscreen Hardware 2015, PAGE 204S

CRL23R Frameless Showerscreen and Mirror Hardware, PAGE 308J

CRL93A Showerscreen, PAGE SD114

Colour:

Brite Anodized

Length:

95" (2.41 m)

Ship Via:

UPS Oversize Rate

Minimum Order:

1 Each

Additional Product Information:

IMPORTANT NOTE: Prima Hinge Model PPH06 and Senior Prima Hinge Model SRPPH06 can be used only with the EZ-Adjust Header System, due to a built-in adaptation to the hinges. No drilling required in Header when using those hinges. If using other Top Mount Pivot Hinges with the EZ-Adjust Header System, an Adaptor Block, and drilling will be required through the Header to accommodate the Adaptor Block.

EACH EZ-ADJUST HEADER KIT CONTAINS:
1 – 95" (2.41 m) or 144" (3.66 m) Header Length
1 – 36" (914 mm) Snap-In Filler Insert for Door Pocket
1 – Deluxe Wall Mount Bracket Kit (Two Brackets)
8' (2.44 m) of 5/16" and 3/8" (8 and 10 mm) Clear Vinyl

Important Notes:

Prima Hinge Model PPH06 and Senior Prima Hinge Model SRPPH06 can be used only with the EZ-Adjust Header System, due to a built-in adaptation to the hinges. No drilling required in Header when using those hinges. If using other Top Mount Pivot Hinges with the EZ-Adjust Header System, an Adaptor Block must be ordered separately, and drilling will be required through the Header to accommodate the Adaptor Block. Bracket used for Header attachment is BWB2.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Secures Shower Enclosure Not Going to Ceiling Use Monolithic Tempered Glass

Allows Horizontal (Side-to-Side) Adjustment of Hinge After Installation

No Hole Drilling Required Through Header for Adaptor, if Using Prima Hinge Model PPH06 or Senior Prima Hinge Model SRPPH06 Constructed of Heavy 6063-T5 Aluminum Alloy For Use with 5/16" (8 mm), 3/8" (10 mm), and 1/2" (12 mm) Thick Glass

Secures Shower Enclosure Not Going to Ceiling
Use Monolithic Tempered Glass

No Hole Drilling Required Through Header for Adaptor, if Using Prima Hinge Model PPH06 or Senior Prima Hinge Model SRPPH06
Constructed of Heavy 6063-T5 Aluminum Alloy
For Use with 5/16" (8 mm), 3/8" (10 mm), and 1/2" (12 mm) Thick Glass
