Catalogue Number: GTC037CH
Finish: CHROME


  • Mounts to Ceiling Instead of Traditional Side Mounting Application

  • Three Stopping Points Include 45 Degrees Out, Closed Position, and 45 Degrees In

  • Stocked in Five Popular Finishes
  • Use Monolithic Tempered Glass

    		•

    Our CRL 3-Point Movable Transom Clamps provide design alternatives to the traditional side mounted "teeter-totter" application. Mounted to the ceiling instead of the sides of the transom allows more glass exposure. The Clamps will hold at 45 degrees inward, at the closed position, and at 45 degrees outward. The square or beveled appearance matches many of our popular Hinge Series. Accommodates 1/2", 3/8", and 5/16" (12, 10, and 8 mm) thick tempered glass.



    CRL Polished Chrome Geneva 3-Point Movable Square Style Transom Clamp





    Other Products/Finishes:

    CATALOGUE NUMBER DESCRIPTION COLOUR
    GTC037CH CRL Polished Chrome Geneva 3-Point Movable Square Style Transom Clamp
    GTC0370RB CRL Oil Rubbed Bronze Geneva 3-Point Movable Square Style Transom Clamp
    GTC037BN CRL Brushed Nickel Geneva 3-Point Movable Square Style Transom Clamp

    Catalogue Number:GTC037CH
    Also Available in These Catalogues:
    SD16 Frameless Showerscreen Hardware 2015, PAGE 189S
    CRL23R Frameless Showerscreen and Mirror Hardware, PAGE 291J
    CRL93A Showerscreen, PAGE SD099
    Colour:Chrome
    Ship Via:Can Ship UPS
    Minimum Order:1 Each

    SPECIFICATIONS:
  • Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
  • Material: Solid Brass
  • Includes: Gaskets, Mounting Screws, Phillips Screws,
    Allen Screws, and Glass Fabrication Dimensions
  • Gaskets are included for 3/8" and 1/2" (10 and 12 mm) glass only. If using 5/16" (8 mm) glass, Cat. No. GEN13 Gaskets must be ordered.
    Cut-Out Required

    NOTE: Maximum transom size is 28" W x 12" H (711 x 305 mm). Two Clamps must be used per transom. It is recommended to come in 6" (152 mm) to the center of the cutout for each Clamp.


    		•
    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. ColorsColours can vary depending on your computer's video card and on how your monitor's colorcolour is adjusted.

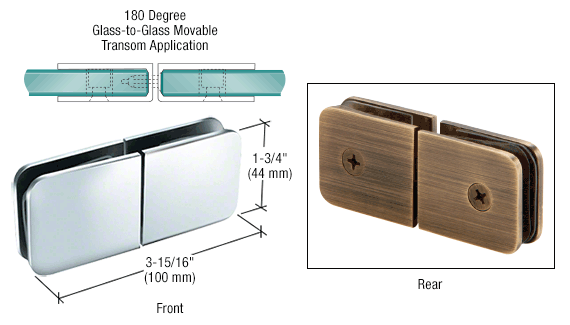

    GCB188CH
    CRL Polished Chrome Traditional Movable Glass-To-Glass Transom Glass Clamp

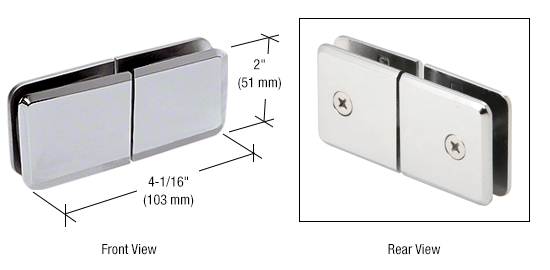

    BGC188CH
    CRL Polished Chrome Square Beveled 180º Glass-to-Glass Movable Transom Clamp

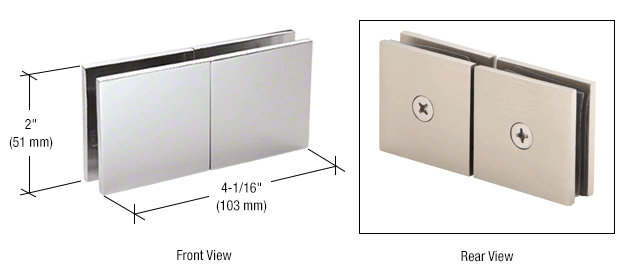

    SGC188CH
    CRL Polished Chrome Square 180 Degree Glass-to-Glass Movable Transom Clamp

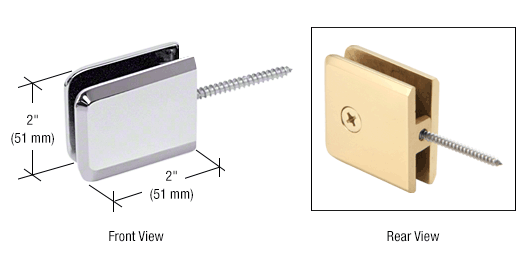

    BGC186CH
    CRL Chrome Square Beveled Wall Mount Movable Transom Clamp

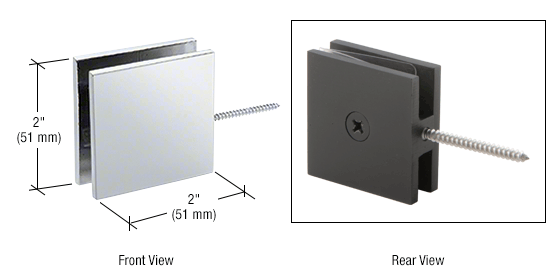

    SGC186CH
