Catalogue Number: CM18X18PS
Finish: POLISHED STAINLESS


  • Stocked in Up to Five Architectural Finishes

  • For Use with 3/8" to 3/4" (10 to 19 mm) Glass

  • Complete with Matching Finish Metal Washers and Through-Bolts for Mounting
  • Use Monolithic Tempered Glass

    		•

    This CRL Glass Mounted Standard Pull Handle is available in three sizes and in many different architectural finishes.

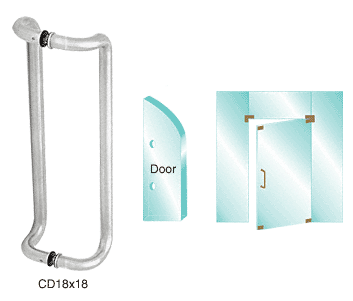

    CRL Polished Stainless 18" Glass Mounted Back-to-Back Standard Pull Handle





    Other Products/Finishes:

    CATALOGUE NUMBER DESCRIPTION COLOUR
    CM18X18PS CRL Polished Stainless 18" Glass Mounted Back-to-Back Standard Pull Handle

    Catalogue Number:CM18X18PS
    Also Available in These Catalogues:
    CRL63A Architectural Hardware Master, PAGE 234H
    AH18 Architectural Hardware Catalogue 2018, PAGE 290Z
    CRL14D Door and Entrance Catalogue, PAGE 424D
    CRL83R Door and Window Replacement, PAGE 614W
    CRL93A Architectural Hardware, PAGE CH093
    DC14 Door Controls Catalogue 2014, PAGE D435
    Colour:Polished Stainless
    Center-to-Center:18" (457 mm)
    Ship Via:Can Ship UPS
    Shipping Weight:2 lb (907g)
    Minimum Order:1 Each

    SPECIFICATIONS:
    For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
    Construction:
    1" (25 mm) Diameter Stainless Steel or Brass
    Tubing. *1-1/4" (32 mm) Diameter Stainless
    Steel (Cat. No. CD24X24BS125 Model only).
    Projection: 3" (76 mm) from Face of Glass to Outside of Handle
    Glass Fabrication Required:
    Two 5/8" (16 mm) Diameter Holes

    INCLUDES:
    2 Each: Through-Bolts for Glass Mounting
    4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
