Catalogue Number: DW4836S0XUA
Finish: SATIN ANODIZED

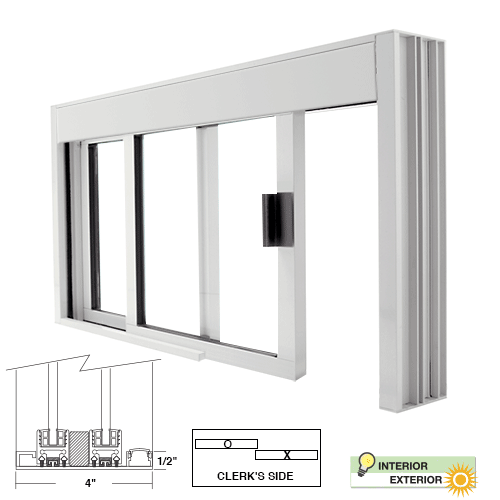

  • Ships Assembled and Unglazed,
    Vinyl for 1/4" or 1/2" Glass

  • OX Clerkside (X=sliding panel)

  • Sturdy Self-Latching Handle
  • Popular 47-1/2" W x 35-3/4" H Frame Size
    fits 48" x 36" Opening
  • S.S.Step-Sill with Water Dam,
    Manual Open/Manual Close

  • CRL Standard Size Manual Deluxe Service Windows ship fully assembled, ready to glaze or factory glazed and ready to install. They are designed for heavy-duty commercial use such as drive-thru or walk-up service and are also ideal for interior applications needing enhanced security and performance. Standard size models are available in Satin Anodized or Duranodic Bronze finish. Different models are available with two types of bottom condition: half-track (no track under sliding panel for clear passage across counter by others) or stainless steel step-sill, with water-dam for exterior applications. CRL also quotes custom versions of these high-quality, popular windows.



    CRL Standard Size Manual DW Deluxe Service Window Unglazed with S.S.Step-Sill





    Other Products/Finishes:

    CATALOGUE NUMBER DESCRIPTION COLOUR
    DW4836S0XUA CRL Standard Size Manual DW Deluxe Service Window Unglazed with S.S.Step-Sill
    DW4836SX0UA CRL Standard Size Manual DW Deluxe Service Window Unglazed with S.S.Step-Sill
    DW4836S0XUDU CRL Standard Size Manual DW Deluxe Service Window Unglazed with S.S.Step-Sill
    DW4836SX0UDU CRL Standard Size Manual DW Deluxe Service Window Unglazed with S.S.Step-Sill

    Catalogue Number:DW4836S0XUA
    Also Available in These Catalogues:
    This Item is Not Yet Shown in Any Printed Catalogue.
    Colour:Satin Anodized
    Frame Width:47-1/2"
    Frame Height:35-3/4"
    Frame Depth:4"
    Ship Via:No UPS, common carrier or will call only
    Shipping Weight:40 lb (18.14kg)
    Case Qty:1

    CRL DW standard size models that ship unglazed come with two sets of glazing vinyl: one for ¼” glass, and one for ½” glass (the larger vinyl will also accept 9/16” glazing).

    For 5/8” glazing vinyl (5/8” is maximum glass thickness for glazing a DW window with vinyl), CRL product # WV3865 can be ordered separately. It is sold by the foot, minimum order 100 feet.

    For 3/8” glass, the provided ½” vinyl can be used if the edges of the glass are wrapped with CRL product # 982116X34GRY double-sided adhesive foam tape, with the backing left on the outer edge that enters the glazing vinyl channel. It is sold separately in 200-foot rolls.

    Glass sizes for CRL DW standard size models with 47-1/2” W x 35-3/4” H frame size and a stainless-steel step-sill, are 21-3/8” W x 30-15/16” H (two pieces same size).

    Heavy Duty Service Windows; not designed to be primary building seal for severe weather conditions.
