Catalogue Number: ATL01CH
Finish: POLISHED CHROME


  • Self-Centering Function

  • Hold Open at 90 Degrees
  • Use Monolithic Tempered Glass
  • Easy to Set Closed Position
  • Ideal for Large Interior 5/16", 3/8" or 1/2" (8, 10 or 12 mm) Tempered Glass Doors and Gates
  • Easy Closed Position Adjustment for Double Door or Inline Panel Applications
  • Four Architectural Finishes

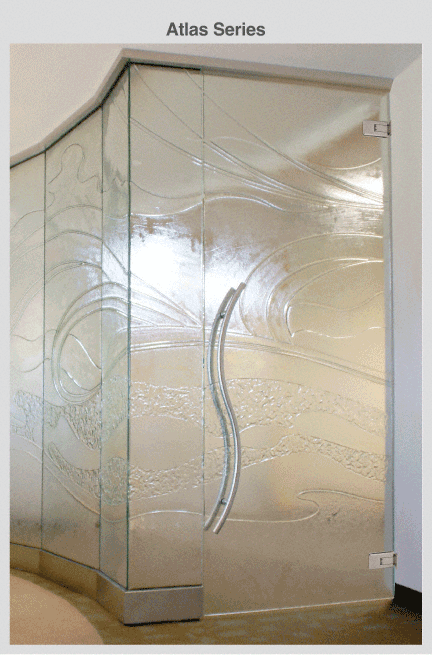

  • This innovative CRL Atlas Series 'All-Glass' Door Hinge gives you the best of two worlds; minimal hardware and self-centering action, all wrapped up in a stylish, heavy-duty Hinge. Two of these double-acting Hinges will allow you to create 'all-glass' doors or gates weighing up to 140 lbs. (63.5 kg) with a maximum width of 39" (1 m).



    CRL Polished Chrome Atlas Glass Door Hinge





    Other Products/Finishes:

    CATALOGUE NUMBER DESCRIPTION COLOUR
    ATL01CH CRL Polished Chrome Atlas Glass Door Hinge
    ATL010RB CRL Oil Rubbed Bronze Atlas Glass Door Hinge
    ATL01BN CRL Brushed Nickel Atlas Glass Door Hinge

    Catalogue Number:ATL01CH
    Also Available in These Catalogues:
    SD16 Frameless Showerscreen Hardware 2015, PAGE 126S
    CRL14D Door and Entrance Catalogue, PAGE 154D
    CRL23R Frameless Showerscreen and Mirror Hardware, PAGE 176J
    AH18 Architectural Hardware Catalogue 2018, PAGE 234Z
    CRL63A Architectural Hardware Master, PAGE 355H
    CRL53R Glass & Glazing Catalogue, PAGE 397G
    CRL63R Architectural Balustrade Systems, PAGE 516R
    CRL93A Showerscreen, PAGE SD032
    Colour:Polished Chrome

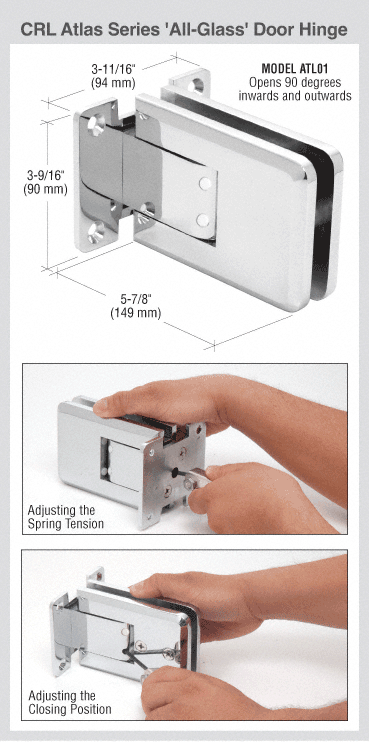

    Height:3-9/16" (90 mm)
    Width:3-11/16" (94 mm)
    Length:5-7/8" (149 mm)
    Ship Via:Can Ship UPS
    Shipping Weight:6.5 lb (2.95kg)
    Minimum Order:1 Each

    The automatic self-centering function with adjustable spring strength eliminates the need for any closer mechanism, and will self-center the door from any position. When fully opened, the Atlas Hinge will hold open at 90 degrees. These Hinges offer easy to set custom closed positioning.

    The solid brass construction and stainless steel components make the Atlas Hinge a natural for environments that may encounter excess moisture.

    NOTE: Do not exceed two Hinges per door.

    Glass Thicknesses: 5/16" to 1/2" (8 to 12 mm)
    Construction: Solid Brass
    Hinge Swings: 90 Degrees Inwards and Outwards
    Closing Type: Self-Centering From 0 to 50 Degrees and Precise Closing to 0 Degrees
    Special Feature: Holds Open at 90 Degrees;
    Easy to Set Closed Position
    Notch and Hole Required
    Includes: Gaskets, Phillips Screws, and Glass Fabrication Dimensions

    CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
