For 3/8" (10 mm) Glass
Clear Vinyl Secures Glass in Channel and Eliminate the Need for Messy Silicone

Recess in Bottom Channel Hides Caulk Line

Channel and Matching End Caps Available in Four Popular Finishes

CRL Dry Glaze U-Channel offers the installer many benefits. It eliminates the need for messy silicone between the glass and metal, dramatically reducing installation time. If the glass is ever scratched or damaged it can be removed without the need to cut out the sealant.

CRL Brushed Nickel Dry Glaze U-Channel With Vinyl

Other Products/Finishes:

CATALOGUE NUMBER	DESCRIPTION	COLOUR
DUC38BA	CRL Brite Anodized Dry Glaze U-Channel With Vinyl
DUC380RB	CRL Oil Rubbed Bronze Dry Glaze U-Channel With Vinyl
DUC38BN	CRL Brushed Nickel Dry Glaze U-Channel With Vinyl

More Details:

Catalogue Number:

DUC38BN

Also Available in These Catalogues:

SD16 Frameless Showerscreen Hardware 2015, PAGE 197S

CRL23R Frameless Showerscreen and Mirror Hardware, PAGE 301J

CRL93A Showerscreen, PAGE SD107

Colour:

Brushed Nickel

Length:

95" (2.41 m)

Ship Via:

UPS Oversize Rate

Shipping Weight:

1 lb (454g)

Minimum Order:

1 Each

Additional Product Information:

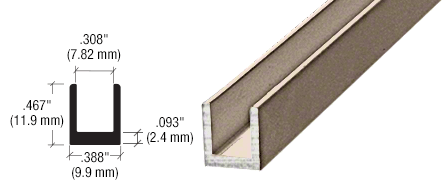

The extruded aluminum channel is wrapped in a protective poly sleeve with two pieces of clear vinyl to secure 3/8" (10 mm) glass. The Flexible Vinyl goes on the interior of the shower, while the Rigid Leg Vinyl "rolls in" on the exterior side. Matching finish End Caps adhere to channel ends, and must be ordered separately.

NOTE: Not designed for "Lift and Drop" applications.

SPECIFICATIONS:
Materials: 6463-T5 Extruded Aluminum, Rigid Clear Vinyl, and Flexible Clear Vinyl
Includes: 95" (2.41 m) Lengths of Channel, Rigid Vinyl, and Flexible Vinyl
