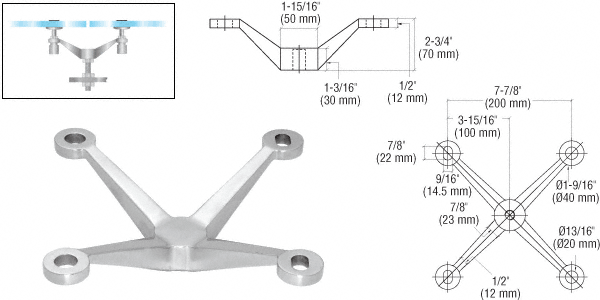

PMH2VBS - CRL Brushed Stainless Double Arm "V" Heavy Duty Post or Column Mount Spider Fitting
C.R.LaurenceC.R. Laurence of Australia Pty Ltd.
Connecting the World to Everything Glass
 YOUR ACCOUNT               VIEW CART                SIGN INSIGN OFF
Search


View Larger Image

Catalogue Number: PMH2VBS
Finish: BRUSHED STAINLESS


  • For Use with Glass Up to 1-1/16" (27 mm)

  • Complete with Hardware to Mount to Post or Column

  • Glass Attachments are Sold Separately
  • Use Monolithic Tempered Glass

  • This CRL Post Mount Fitting is used to attach a single glass panel to a structural end post, or two inline glass panels to a structural center post. Comes with 16 x 99.5 mm (3-7/8") stainless steel threaded stud and three matching nuts with washers. Replacement Stud Set is available.



    CRL Brushed Stainless Double Arm "V" Heavy Duty Post or Column Mount Spider Fitting





    Other Products/Finishes:

    CATALOGUE NUMBER DESCRIPTION COLOUR
    PMH2VBS CRL Brushed Stainless Double Arm "V" Heavy Duty Post or Column Mount Spider Fitting
    PMH2VPS CRL Polished Stainless Double Arm "V" Heavy Duty Post or Column Mount Spider Fitting

    Catalogue Number:PMH2VBS
    Also Available in These Catalogues:
    AH18 Architectural Hardware Catalogue 2018, PAGE 503Z
    CRL63A Architectural Hardware Master, PAGE 551H
    CRL93A Architectural Hardware, PAGE CH297
    AM09 Architectural Metals 2009, PAGE M187
    Colour:Brushed Stainless
    Ship Via:Can Ship UPS
    Shipping Weight:5 lb (2.27kg)
    Minimum Order:1 Each

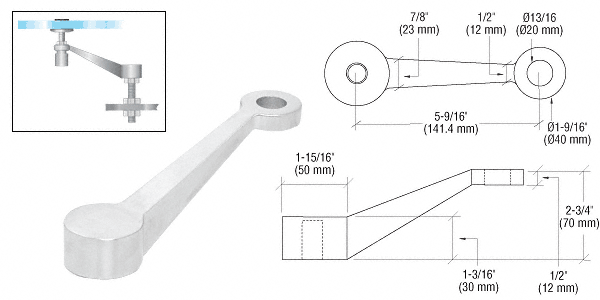

    For companion fitting, use Cat. No. PMH1LBS, PMH1LPS, PMH3BS,PMH3PS, PMH4BS or PMH4PS Fittings.


    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. ColorsColours can vary depending on your computer's video card and on how your monitor's colorcolour is adjusted.
